Description

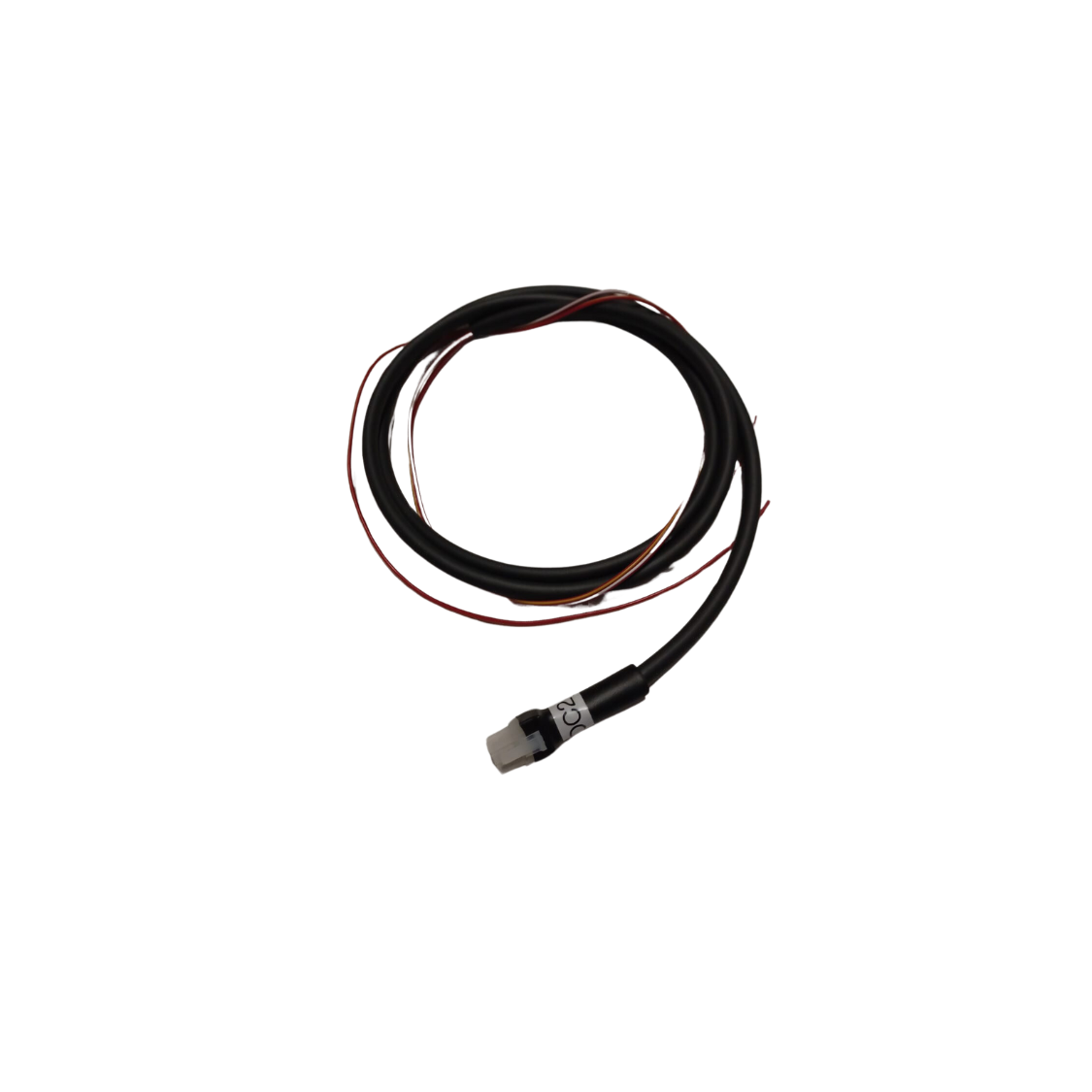

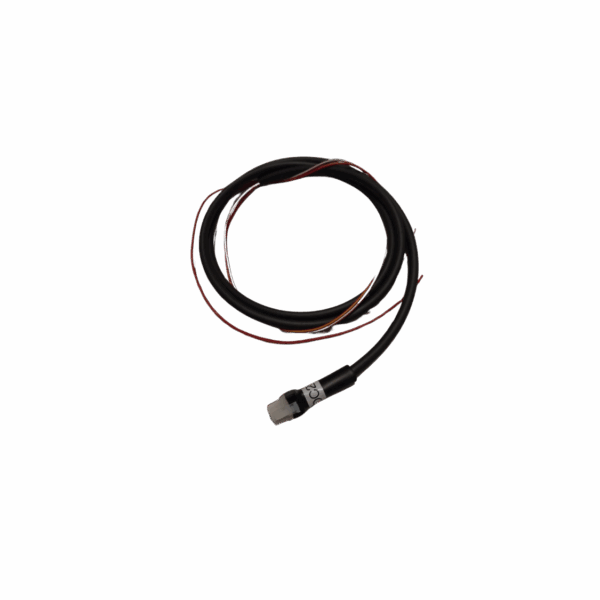

The OC2_P2 Coil Driver Harness (2-Way) is a Level 1 output harness developed specifically for use with Spitronics Orion Coil Drivers. It allows connection of two basic ignition coils that do not have internal drivers, enabling reliable high-voltage ignition control in systems using external coil drivers.

This harness includes 2 high-voltage negative output wires and is designed to match the input wire colors from Mercury3 or Orion2 harnesses, intentionally mirroring input and output color schemes to reduce confusion during installation—though this may differ from the standard striped black wiring found in other Spitronics systems.

Supports 2 Basic Coils: Ideal for use with coils that require external driver circuits.
Matched Input/Output Wire Colors: Follows Orion2 and Mercury3 wire conventions to simplify connections.
Applications: Designed exclusively for use with Orion Coil Drivers in dual-coil ignition setups.

Wiring Details:

• 2x Negative outputs (Striped Red)

• Refer to the design drawing for wire lengths and thickness.

• Always isolate unused wires to prevent shorts or electrical noise.
